Lithium batteries are dangerous goods and transporting them is only permitted with UN 38.3 certification according to the UN Manual of Tests and Criteria. The International Air Transport Association (IATA) assists by publishing the IATA Dangerous Goods Regulations (DGR) that helps classify, mark, pack, label and document dangerous shipments. DGR is recognized by all major airlines.
Lithium-based batteries are divided into Li-ion found in mobile phones and laptops, as well as the more restrictive lithium-metal used in sensing devices and the consumer grade lithium cells in AA, AAA and 9V formats. Airlines allow both types as carry-on, either installed or carried as spare packs, as long as they don’t exceed the following lithium limitation:
|
The lithium content in the battery governs the energy storage capacity (runtime) measured in watt-hours (Wh). The Wh measurement is used to limit the quantity a passenger can bring onboard an aircraft, what can be transported outside of the Class 9 dangerous goods designation, and what mandates Class 9.
To calculate the lithium content, multiply the rated capacity (Ah) times 0.3. For example, a 1Ah cell has 0.3 grams of lithium. To derive Wh, multiply Ah by the cell voltage of 3.6V. A typical laptop battery of 14.4V and 5Ah has 72Wh. (Lithium content: 5Ah x 0.3g = 1.5g x 4 cells in series = 6g).

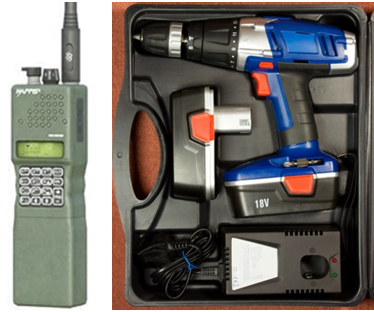

IATA differentiates between batteries contained in the equipment (non-removable) and batteries that are packaged separately. If contained, such as in watches, smartphones or laptops, the Wh limit is ignored if less than 100Wh. However, if the battery is packaged with the equipment and is interchangeable, such as a removable pack of a power tools, then the battery must be counted. Figures 1a and 1b illustrate examples of “contained in equipment” and “packaged with equipment.”
Battery is external. Device has access to spare batteries. Example: Power tool with spare pack. 30% SoC rule applies. |
Since 2016, lithium batteries can no longer be carried in passenger aircraft as cargo. Under DGR, the packaging instructions (PI) are organized into PI 965 to PI 970. PI 965 covers Li-ion cells and battery packs only (UN3480), while PI 966 includes Li-ion installed in equipment and PI 967 combines Li-ion with equipment (UN3481). Because of higher lithium content, lithium-metal batteries are handled separately under PI 968 to 970 (UN3090 and UN3092). Most lithium-metal are non-rechargeable.
Transporting lithium batteries is divided into two categories:
- Non-Class 9 hazardous material shipment. It involves small batteries in limited quantities. Shipping restrictions also apply for courier and mail deliveries. Attach CAUTION labeling.
- Class 9 hazardous material. This enables shipment of larger battery sizes and higher volumes.
Packaging Instruction 965 — includes loose Li-ion cells and battery packs (UN 3480)
Table 2 divides the transport of Li-ion products into four groups:
- Carry-on defines the quantity of Li-ion cells and battery packs a passenger can take on an aircraft;
- Section II specifies shipment of small Li-ion products in low numbers;
- Section 1B advises on the shipment of small Li-ion products in larger numbers;
- Section 1A governs larger Li-ion products;
Only Carry-on and Section II are exempt from Class 9 hazardous material designation. IATA mandates that cells and battery packs cannot be combined in the same shipping box. Use separate boxes.
Shipment of loose Li-ion cells and battery packs.(IA, IB and II are in Roman numerals)
1 |
Passenger Aircraft Ban: Under Sections II, IA and IB, Li-ion is forbidden on passenger aircraft as cargo. All packages must bear the “Cargo Aircraft Only” label in addition to other required marks and labels. This limitation does not affect lithium-ion batteries packed with or contained in equipment. State-of-charge Limits: Li-ion must be shipped at a state-of-charge of no more than 30% of the rated capacity. This does not apply to batteries packed with or contained in equipment. Other Restrictions: Shipper can only offer one Section II package (batteries only) per consignment. Lithium battery shipments must be separated from other cargo. |
2 |
Typical smartphone or tablet battery; 3 Typical laptop battery |
Labeling
All Li-ion shipment must include the CAUTION labels as shown in Figure 3a to indicate the presence of lithium batteries. Since lithium batteries are only allowed in cargo aircraft, also attach the “Cargo Aircraft Only” label illustrated in Figure 3b. Batteries shipped Class 9 in Section IA and IB must include the Class 9 label as per Figure 3c. The package must also accompany shipping documents with name and address of consignor, date, phone number and description of shipment, including the UN number and weight.
120mm x 115mm (4.72x4.53”) Must be attached to all packages as per Sections II, IA and IB. This also applies if shipped by courier and mail. |
300mm x 300mm (11.8x11.8”) New regulation requires that all lithium batteries be shipped on cargo aircraft. Attach this label when applicable. |
100mm x 100mm (3.94x3.94″) Must be attached to packages as per Section IB and IA in addition to the CAUTION label. |
30% State-of-charge Mandate
All lithium batteries shipped under PI 965 in Sections II, IA and IB must have a state-of-charge (SoC) of 30 percent. This mandate is added because Li-ion is more stable at low SoC than when fully charged. (An analogy is a boiler that is safer at low pressure than when the gauge touches the red line.) An open circuit voltage of 3.70V when rested indicates that the Li-ion cell is roughly at a 30 percent SoC. Discharge Li-ion to 3.65V/cell at moderate current. The 50mV overshoot compensates for the rubber band effect as the battery recovers to 3.70V/cell in time. (See BU-702: How to Store Batteries). Modern battery chargers and analyzers include the AirShip program.
Note:
- Li-ion voltages vary according to chemistry
- The SoC limit does not apply to Li-ion batteries that are packed with or installed in products.
General Transport Requirements
Travel: |
Placing batteries in checked luggage is not permitted. Passengers must carry the allotted batteries onboard the aircraft. Non-removable batteries are exempt (out of sight, out of mind); however, not all airlines permit checked bags that include embedded Li-ion batteries in devices. |
|
Safeguard: |
Batteries must be protected against short circuit. Place them in individual plastic bags.
|
|
Approval: |
All Li-ion batteries shipped under Class 9 hazardous material must meet the UN Manual of Tests and Criteria, Part III, subsection 38.3. A battery pack must be reapproved if the cells are changed. This applies also if the replacement cells have already been approved. The approval is on the entire pack.
|
|
Prototype: |
Shipping prototype batteries for testing are exempt. Refer to CFR 49 173.185 (e) regarding shipping of non-UN tested batteries.
|
|
Damage: |
Batteries identified as defective and in danger of failing in transport are forbidden.
|
|
Old batteries: |
Lithium-based batteries for disposal are forbidden from air transport unless approved by the appropriate authorities.
|
|
Packing: |
Each shipping package must withstand a 1.2 meter (4 feet) drop in any orientation without damaging the batteries, causing them to shift or releasing the contents.
|
|
Overpack: |
Packages placed in an overpack with other goods cannot contain more than one (1) dangerous goods package in accordance with Section II of PI 965. The overpack can, however, contain other non-dangerous goods or compatible dangerous good items. |
101mm x 74mm (4.0x2.94”) Other dimensions may apply |
Training: |
Personnel handling lithium-based batteries for transport must be trained.
|
Packaging Instructions 966 and 967 (UN 3481)
PI 966 governs Li-ion cells and battery packs with equipment under UN 3481, and PI 967 oversees Li-ion cells and battery packs in equipment under UN3481 (Table 5). These rules are similar to PI 965 with the exception that Li-ion cells and battery packs can be shipped with, or in the equipment. Equipment means an apparatus requiring Li-ion products to operate.
Shipment of Li-ion batteries with, and in equipment
Additional Requirements
Limitation: |
The maximum number of batteries in each package must be limited to those required to operate the equipment. Extras must be shipped separately or in an overpack. |
|
Activation: |
Equipment must be turned OFF. Accidental activation in transport must be prevented. Devices such as watches and temperature loggers that do not pose a danger in transport may be left in the ON position.
|
|
Note: |
The 30% SoC rule does not apply to batteries packed with or contained in equipment
|
Packaging Instruction 968 — permits lithium-metal cells and battery packs (UN3090)
Lithium-metal batteries have tighter shipping requirements than lithium ion batteries. Most Li-metal is non-rechargeable, and it is used in watches, medical instruments, pacemakers, sensors, memory retention, etc. There are also consumer-grade lithium-metal in AAA, AA, 9V and other formats. Table 6 lists the restrictions in the shipment of these batteries.
Shipment of lithium-metal cells and battery packs
Packaging Instruction 969 and 970 (UN 3091)
PI 969 includes lithium-metal with the equipment under UN 3091, while PI 970 rules include lithium-metal in the equipment, also under UN 3091 (Table 7).
Shipment of lithium-metal with and in equipment
Shipping Prototype Batteries
Shipping prototype batteries, including annual production runs of no more than 100 cells, or batteries for testing, are exempt when adhering to shipping regulations CFR 49 173.185 (e). Shipping non-UN tested batteries is described in: 49 CFR § 173.185 - Lithium cells and batteries.
It is FORBIDDEN to ship damaged, defective, recalled or recycled lithium batteries by aircraft. This ban applies for loose cells or batteries, and those contained in equipment.
